Regular price $149.99 $149.99 Sale

Product Details

Brand: VISUO

Highlights



Features:
Wifi transmission system provides easy and fun FPV flight.
2.0MP 120° FOV wide angle HD camera can take photos and record 720P videos.
Foldable design, portable and easy to carry.
Tiltable camera to adjust view angle.
Unique fuselage design and high quality painting, outstanding appearance.
Upgraded 2.4G 4CH transmitter for your easy control.
The latest 6-axis flight control system, provides super stable flight.
With headless mode, and one-key return care free to fly.
High/low speed mode and 3D flip function provide you cool flying experience.
Equipped with barometer and height hold function, easy to fly.

Selling Points



1
Built-in Camera: With HD Camera
2
Function: With Camera Upside Down Flight 360°Rolling Headless Mode One Key To Auto-Return

Specifications



Model XS809HW
Channel Number

4ch

Gyro

6 Axis

Battery

3×AA

Radio System

2.4G

Built-in Camera

With HD Camera

Camera Resolution 720P
Camera Pixels 2.0MP
IOS & Android System Control

Android

,

IOS

Battery for Body

3.7V 900mAh

Remote Control Distance(m) 100
Flight time(min) 10
Net Dimensions(cm) 18*13*6
Net Weight(kg) 0.158
Shipping Weight(kg) 0.7
Function

Wide-Angle Camera

,

Low Power Alarm

,

With Camera

,

Upside Down Flight

,

360°Rolling

,

Headless Mode

,

One Key To Auto-Return

Certification

CE Certified

What's in the box

1 USB Cable Lead

,

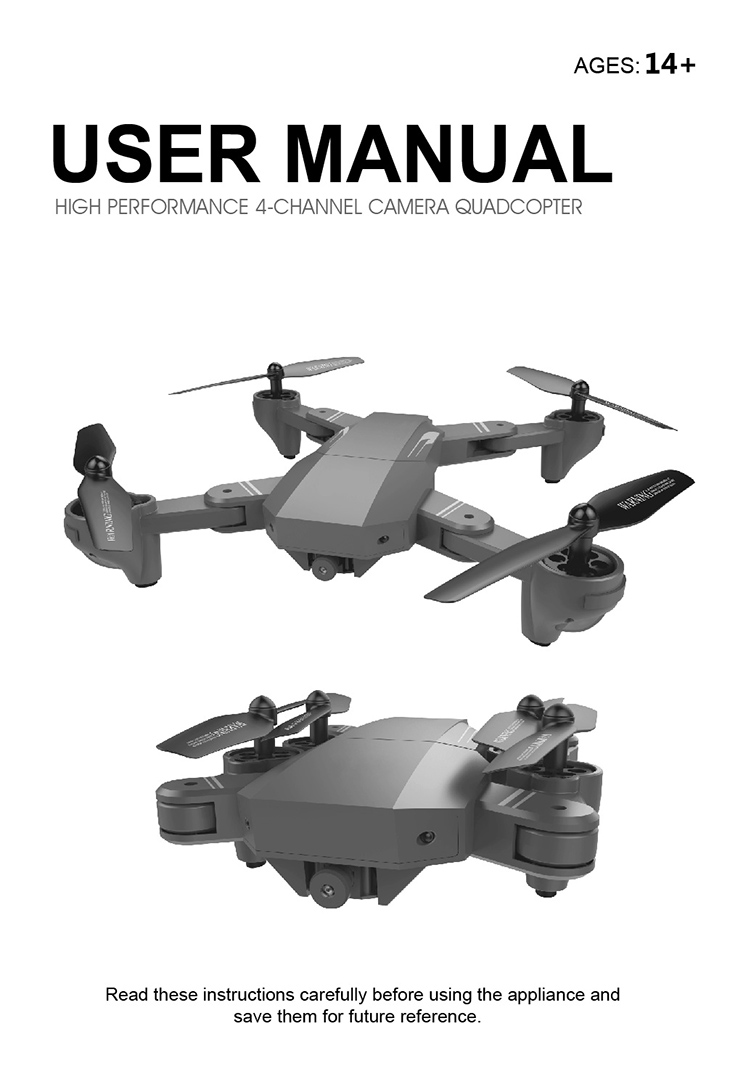

1 Operation Manual

,

1 Screwdriver

,

Propeller Guards

,

User Manual

,

Blades

,

Remote Controller / Transmmitter

,

RC Quadcopter

Listing Date 06/26/2017

Restrictions:



Coupon Not Applicable

Learn More About This Product



FAQs



  • Q:What is Transmitter Option?
  • A:The RC Transmitters have two options: "Mode 1" and "Mode 2"
  • Mode 1: It means "Right Throttle Hand". It is also be called Japenese Hand. The throttle button will be on the Right side of the transmmitter and the direction control button will be on the left.

    Mode 2: It means “Left Throttle Hand”. It is also be called American Hand. The throttle will be on the left of the transmmitter and the direction control button will be on the right.

    If there is no special explanation, the transmitter will be "Mode 2"

  • Q:How I can find a Camera for the Drones, which have gimbals?
  • A:More Sports Cameras are supplied, please

    Click Here

  • Q:Why even though all blades spin, the quadcopter still cannot flip / rotate / take off?
  • A:1. Battery power is insufficient, recharge the battery;
  • 2. Check whether the blades are installed correctly.

  • Q:Why one of the blades does not spin?
  • A:1. Check the tightness of the blades;
  • 2. Remove the blade that does not spin to see if the motor is working properly;

  • 3. If the motor does not work, check whether the motor gear is connected properly;

  • 4. Remove the body shell, check if the motor cable is connected to the mainboard appropriately.

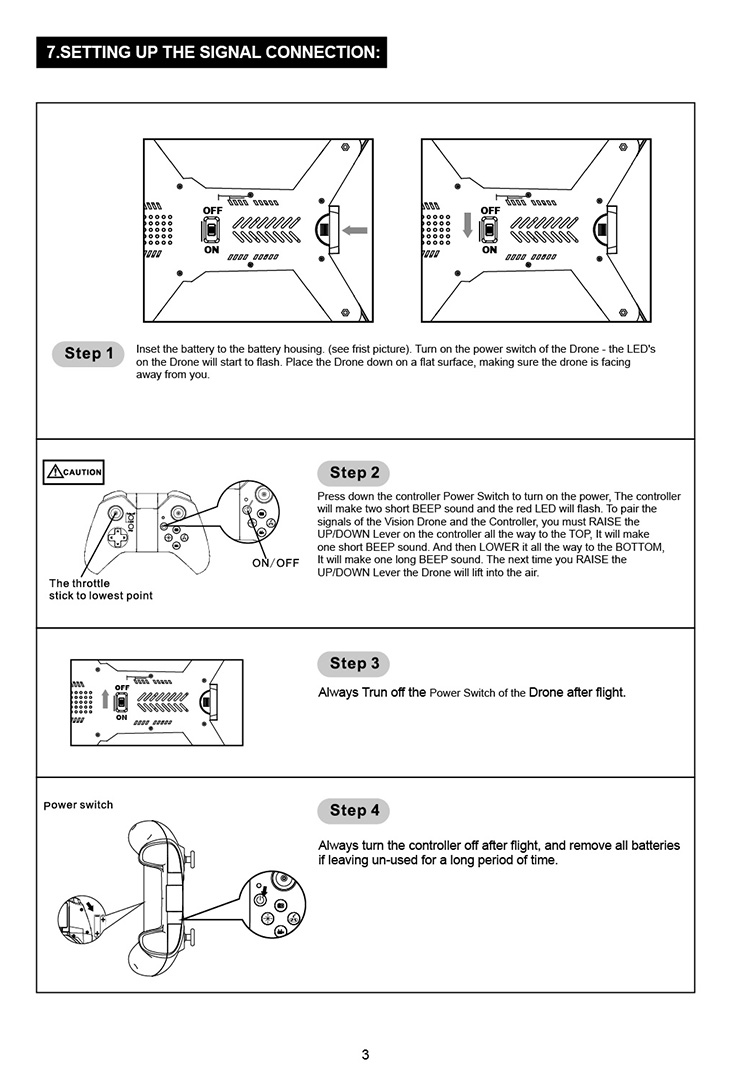

  • Q:How to bind the quadcopter and the transmitter?
  • A:First turn on the quadcopter power switch, place it on a horizontal position, then turn on the transmitter. Push the left throttle lever to the highest position, and then pull it back to the lowest position. You will hear a clear “di, di” sound and the indicator light will stop flashing and just stay lit, meaning the frequency adjustment is completed and your quadcopter is ready to take off.



  • Q:Why the indicator light of the quadcopter is flashing?
  • A:1. Battery power is insufficient, recharge the battery;
  • 2. The quadcopter is not bind to the transmitter correctly, please refer to the user manual to re-modulate the frequency.

  • Q:Why one of the blades spin slower than others?
  • A:1. Check the tightness of the blades ;

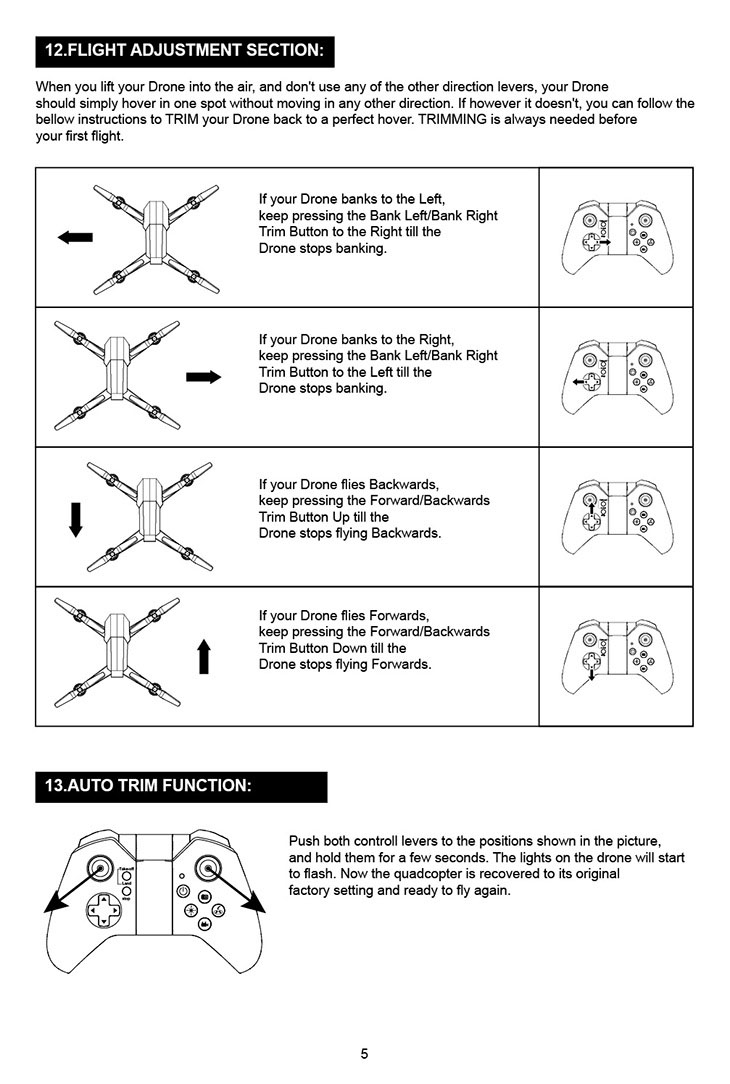

  • 2. Adjust the trim key ;

  • 3. Re-modulate the frequency, the quadcopter must be put on a flat ground;

  • 4. Re-calibrate gyroscope.

  • Q:How to distinguish the steering of a blade?
  • A:Blades are usually marked with A , B or R; A refers to forward blade, B means inverted blade. Blades with R mark are forward blades, inverted blades are without R mark. Diagonal direction blades have the same steering, adjacent blades have opposite steering.



  • Q:How to judge the steering of a motor?
  • A:1. Usually, motor with red and blue wires is usually a forward motor, while the reversed motor presents black and white wires; Diagonal direction motors have the same steering, adjacent motors have opposite steering.2. On the motor surface sometimes you can find CW or CCW. CW stands for forward motor, while CCW refers to reversed motor.



  • Q:Why one of the blades spin slower than others?
  • A:1. Check and make sure that the batteries are installed by the right polarity.
  • 2. Battery power is insufficient, please full charge the battery, or replace with a full charge battery.

  • Q:Why the voltage of single battery cell is lower?
  • A:Single battery cell voltage imbalance is a normal phenomenon. Large current discharge will usually lead to voltage difference.This may be caused by poor contact between battery and charger, and the customer should adopt balance charge mode to charge the battery.
